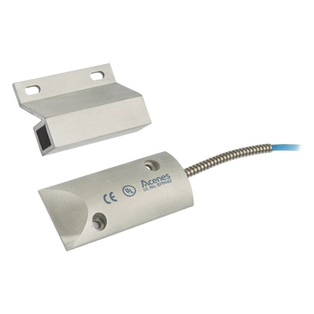

Overhead Garage Door Contact Floor Mounted

Name

Overhead Garage Door Contact Floor Mounted

Acenes Part

OHF-9-1K1K

Wires

2 wires

Wire Color

Blue

Include 1K/1K

Yes

Loop Type

Closed circuit

Number of devices per package

1

Certification

CE, UL

Specifications

UL, CE. RoHS

Description
Part Number
Loop Type
Reed Form
Contact Color
Closed Gap (in steel door)[Inch(mm)]
Depature Gap(in steel door)[Inch(mm)]
Maximum Initial Contact Resistance (Ohm)
Maximum Contact Rating (W)
Maximum Switching Voltage (VDC/VAC)
Maximum Switching Current (A)
OHF-9-1K1K
Closed
N/O
2.95(75)
3.18(80)
0.15
7.5
100
0.4
Features

  • Miniature floor mount

  • Universal magnet for flexibility in mounting

  • Extrude aluminum casings for harsh environments

  • Wire: #22AWG with 22" armored cable

  • Longer cable available on request

  • Switches or magnets are available separately

  • Jacket cable available: BSD3013-JK

  • Resistor, Diode and Supervisory Loop available on request
